Pick a number from the Unpod pool and connect it to a SIP trunk - no carrier account needed.

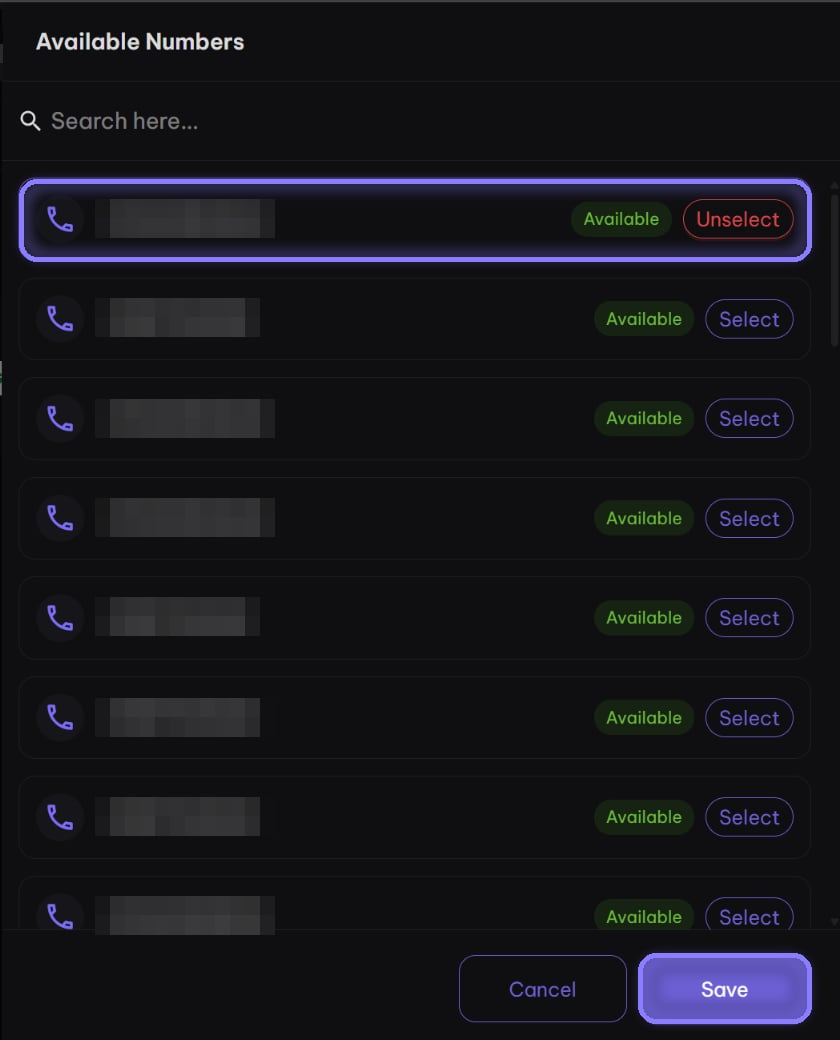

Unpod gives every org a pool of ready-to-use phone numbers. You don’t need a carrier
account to use them: pick a number, connect it to a SIP trunk, and you get an
outbound trunk for calls you make and an inbound trunk
for calls you receive.

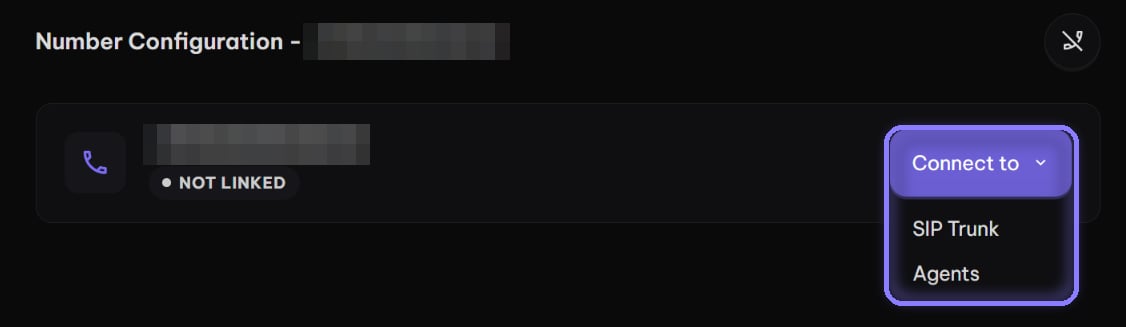

Created automatically - for calls you make from your Unpod number.The moment you choose Connect to → SIP Trunk, Unpod creates the outbound trunk and
the number turns Linked. Outbound is complete at this point - there is nothing else
to configure.

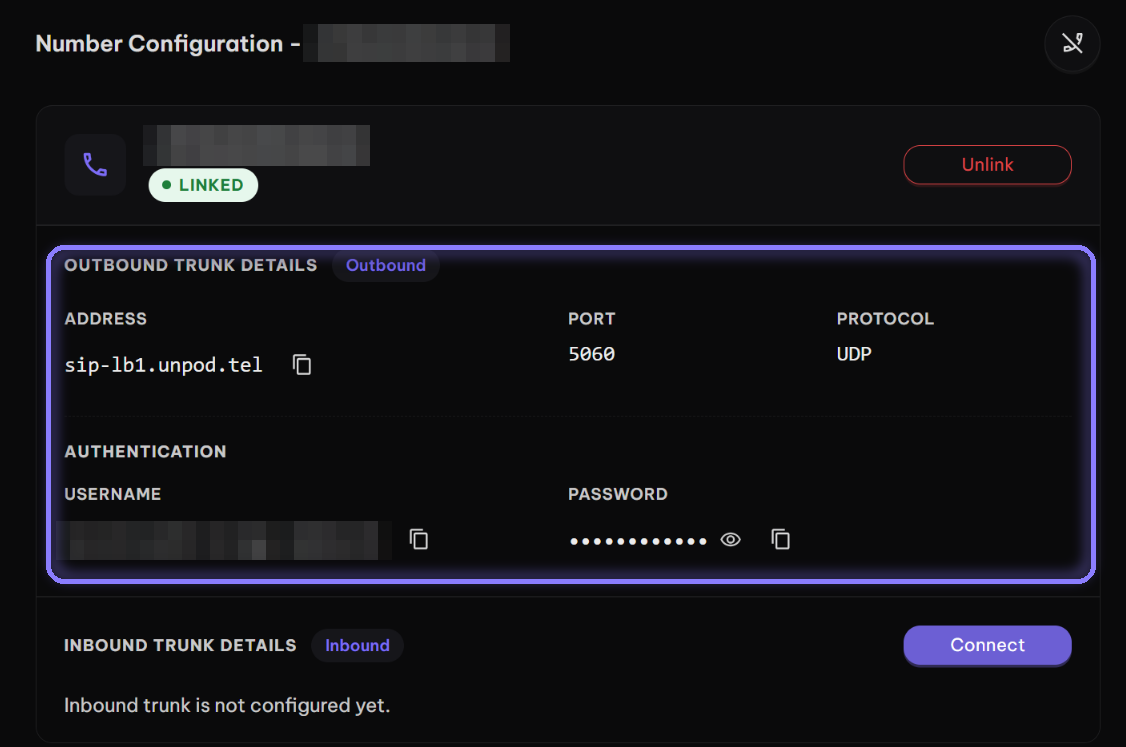

Outbound Trunk Details - ready as soon as you choose SIP Trunk
To place calls, point your SIP client at these values:
Field
Value
Address
sip-lb1.unpod.tel
Port / Protocol
5060 / UDP
Username
Generated for your number. Use the copy button.
Password
Generated for your number. Click the eye icon to reveal it, or use the copy button.
The username and password let anyone place calls on your number. Keep them in a secret
manager, and blur them out before you share a screenshot.
You configure this - for calls people make to your Unpod number.Until you add it, the number shows Inbound trunk is not configured yet and inbound
calls have nowhere to go.
1
Click Connect under Inbound Trunk Details

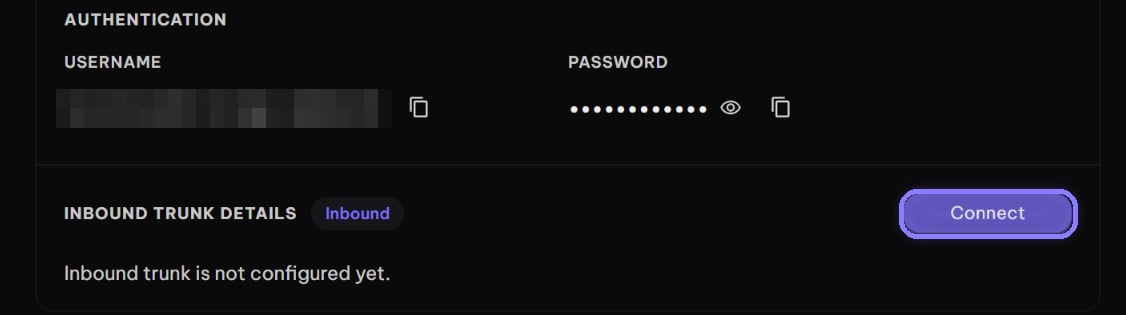

Inbound Trunk Details - Connect opens the trunk form
2
Fill in the trunk
On the New trunk tab, tell Unpod where to send incoming calls:
Field
What to enter
Name
A label you’ll recognise, e.g. Support inbound.
SIP URI / address
The SIP host that should answer, e.g. sip:your-sip-host.example.com.
Port
5060 unless your SIP host uses another port.
Transport
TCP, UDP or TLS - match your SIP host.
Username / Password
Only if your SIP host requires authentication. Leave blank otherwise.
Allowed IPs / CIDR
Optional comma-separated allow-list, e.g. 203.0.113.0/24.

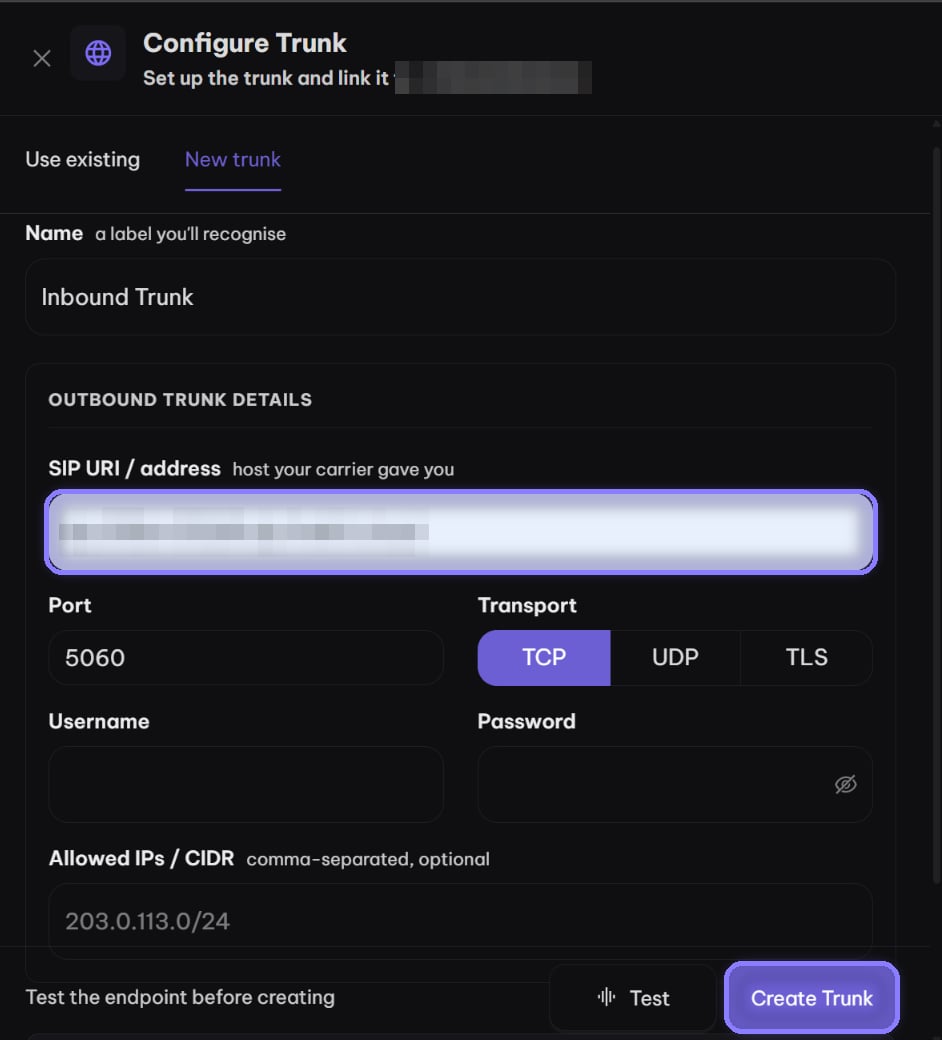

Configure Trunk - the SIP URI is where Unpod sends incoming calls
Already added an inbound trunk for another number? Open the Use existing tab and
pick it instead of creating a new one.
3
Test, then click Create Trunk
Test checks that Unpod can reach your SIP URI. Then click Create Trunk.
The number now shows Inbound Trunk Details with the values you entered. Call the
number to check it.

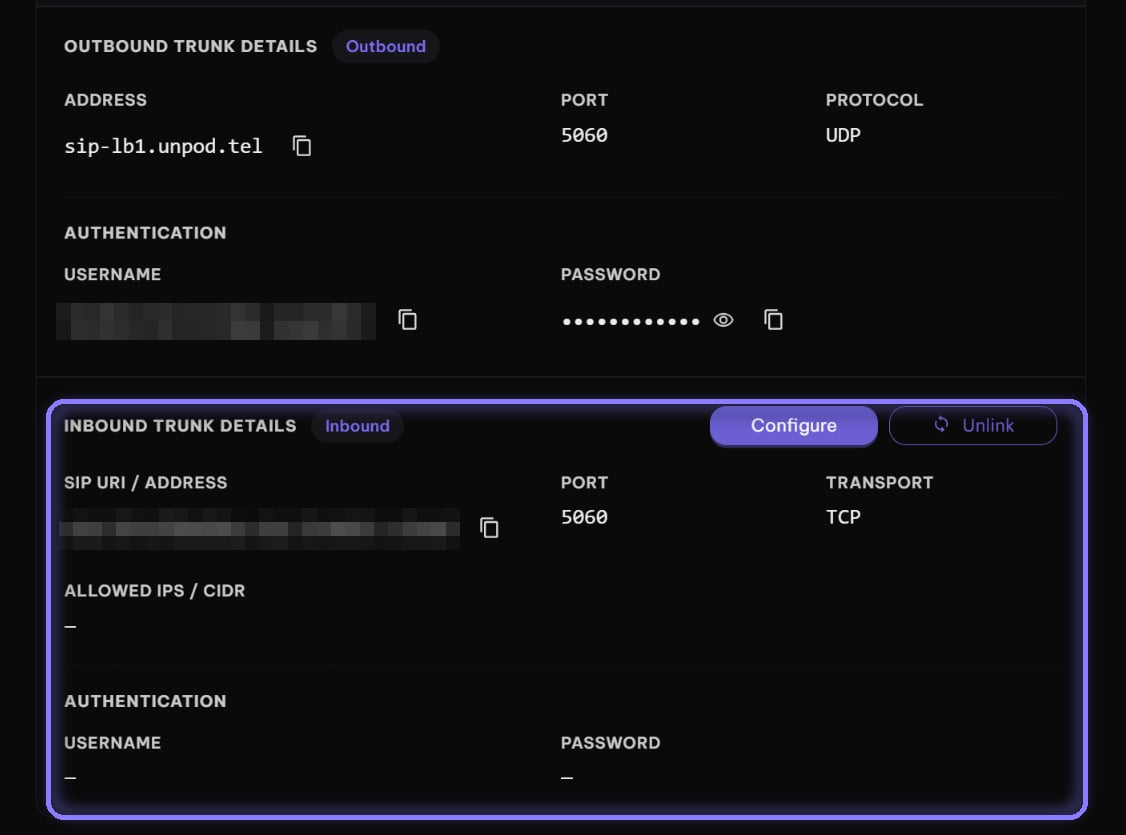

Inbound trunk configured - Configure edits it, Unlink removes it
