Speech Pipe

What Is a Speech Pipe?

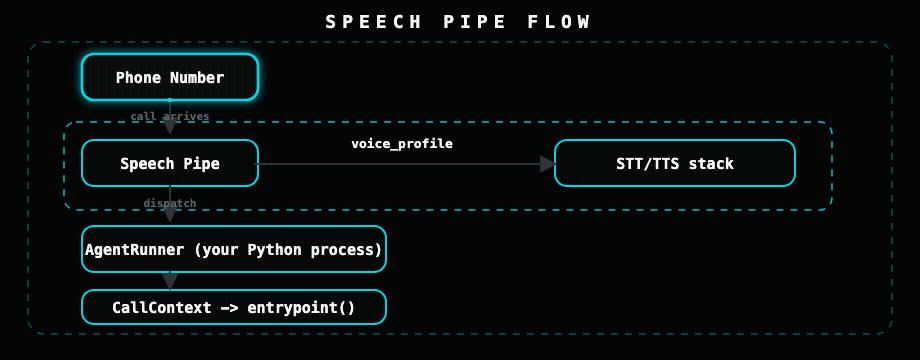

A Speech Pipe in Unpod ties together a voice profile (STT + TTS), telephony (phone numbers), and a pointer to your agent brain into a single deployable unit. When a call arrives on a number attached to the pipe, the orchestrator dispatches it to your AgentRunner process.

Creating a Pipe

import asyncio
from unpod import AsyncClient

async def main():
    async with AsyncClient(api_key="sk_...") as client:
        pipe = await client.pipes.create(
            name="Support Bot",
            voice_profile="vp_en_female_hd",    # from voice_profiles.list()
            agent_id="my-bot",                   # links to your AgentRunner
            recording=True,                      # store call recordings
            max_call_duration_s=600,             # 10-minute hard cap
        )
        print("Created:", pipe.pipe_id, pipe.name)

asyncio.run(main())

`create()` parameters

Parameter	Type	Default	Description
`name`	`str`	required	Display name for the pipe
`voice_profile`	`str \| None`	`None`	Voice profile ID (`vp_...`)
`agent_id`	`str \| None`	`None`	ID of your `AgentRunner` brain - links the pipe to your runner worker (preferred)
`agent_endpoint`	`str \| None`	`None`	Static WebSocket URL (`wss://...`) of your `AgentRunner` bridge - a fallback used when no runner has registered for `agent_id`. Not an HTTP URL.
`recording`	`bool`	`False`	Enable call recording
`max_call_duration_s`	`int`	`3600`	Hard cap in seconds (default 1 hour)

Listing Pipes

import asyncio
from unpod import AsyncClient

async def main():
    async with AsyncClient(api_key="sk_...") as client:
        pipes = await client.pipes.list()
        for p in pipes:
            print(p.pipe_id, p.name, p.voice_profile_id or "no voice profile")

asyncio.run(main())

Pipe fields

Field	Type	Description
`pipe_id`	`str`	Speech Pipe ID (`pipe_...`)
`name`	`str`	Display name
`voice_profile_id`	`str \| None`	Voice profile ID
`agent_id`	`str \| None`	Your `AgentRunner` brain ID
`agent_endpoint`	`str \| None`	Static `wss://` URL of your `AgentRunner` bridge (fallback for `agent_id`)
`recording`	`bool`	Recording enabled
`max_call_duration_s`	`int`	Call duration hard cap
`created`	`datetime`	Creation timestamp
`modified`	`datetime`	Last modified timestamp

Getting a Single Pipe

import asyncio
from unpod import AsyncClient

async def main():
    async with AsyncClient(api_key="sk_...") as client:
        pipe = await client.pipes.get("pipe_...")
        print(pipe.name, pipe.voice_profile_id, pipe.recording)

asyncio.run(main())

Updating a Pipe

import asyncio
from unpod import AsyncClient

async def main():
    async with AsyncClient(api_key="sk_...") as client:
        # Update any subset of fields
        pipe = await client.pipes.update(
            "pipe_...",
            name="Premium Support Bot",
            voice_profile="vp_en_female_hd",
            recording=True,
            max_call_duration_s=1200,
        )
        print("Updated:", pipe.pipe_id, pipe.name)

asyncio.run(main())

Deleting a Pipe

Deleting a pipe does not automatically detach phone numbers. Detach all numbers before deleting to avoid orphaned routing.

import asyncio
from unpod import AsyncClient

async def main():
    async with AsyncClient(api_key="sk_...") as client:
        # Detach numbers first
        numbers = await client.numbers.list()
        for n in numbers:
            if n.pipe_id == "pipe_...":
                await client.numbers.detach(n.number_id)

        # Then delete
        await client.pipes.delete("pipe_...")
        print("Deleted")

asyncio.run(main())

How the Pipe Reaches Your Brain

The pipe never calls your brain over HTTP. On every call the orchestrator dispatches the session to a worker, and the worker connects to your AgentRunner over a WebSocket bridge (text in / text out). There are two ways the pipe finds that runner:

By agent_id (preferred). Run an AgentRunner with the same agent_id as the pipe. It self-registers its bridge serving_url; the orchestrator picks a registered, least-loaded runner per call. You never hardcode a URL.
By agent_endpoint (static fallback). Set the pipe’s agent_endpoint to a fixed wss://... bridge URL. Used only when no runner is registered for agent_id. This is a WebSocket URL, not an HTTP endpoint.

agent_endpoint is not an HTTP webhook - the orchestrator does not POST to it. It is the WebSocket bridge URL your AgentRunner serves on.

Bridging a Remote HTTP Brain

If you already have a chatbot or API (any language) and want to voice-enable it, run an AgentRunner and set its dialog brain to an HTTPAdapter. The adapter POSTs each user turn to your endpoint from inside the runner:

from unpod import AgentRunner, CallContext
from unpod.adapters.http import HTTPAdapter

async def handle_call(ctx: CallContext) -> None:
    ctx.session.dialog_machine = HTTPAdapter(
        url="https://your-api.example.com/dialog/turn",
    )
    await ctx.session.run()

AgentRunner(entrypoint=handle_call, agent_id="my-bot").start()

HTTPAdapter Protocol

The HTTPAdapter sends a POST on every user turn:

POST https://your-api.example.com/dialog/turn
Content-Type: application/json

{
  "text": "I'd like to reschedule my appointment",
  "context": { ... },
  "session_id": "sess_xyz789",
  "system_instructions": ["..."]   // present only after assist() is called
}

Your endpoint must respond with:

{
  "text": "Sure, I can help with that. What date works for you?"
}

This protocol is not OpenAI-compatible. It is a simple text-in / text-out interface - your endpoint owns all LLM or chatbot logic. Forward to OpenAI, Gemini, a rules engine, or anything else under the hood. See Adapters for the full HTTPAdapter contract (streaming, assist(), error surfaces).

Pipe + Runner Pattern (Recommended)

The recommended pattern for production is a dedicated AgentRunner process:

from unpod import AgentRunner, CallContext

AGENT_ID = "my-bot"   # must match the pipe's agent_id

async def handle_call(ctx: CallContext) -> None:
    await ctx.session.say("Hello, how can I help you?")
    await ctx.session.run()

runner = AgentRunner(
    entrypoint=handle_call,
    agent_id=AGENT_ID,
    max_sessions=20,
)
runner.start()

The agent_id in AgentRunner must match the pipe’s agent_id in the platform. The orchestrator uses it to route dispatches to the correct runner worker.
